Hase Pino Allround 2023 w/ All-Axle Front Motor System

$10,930.00
Excl. tax

The rating of this product is 0 out of 5

(0)
On backorder

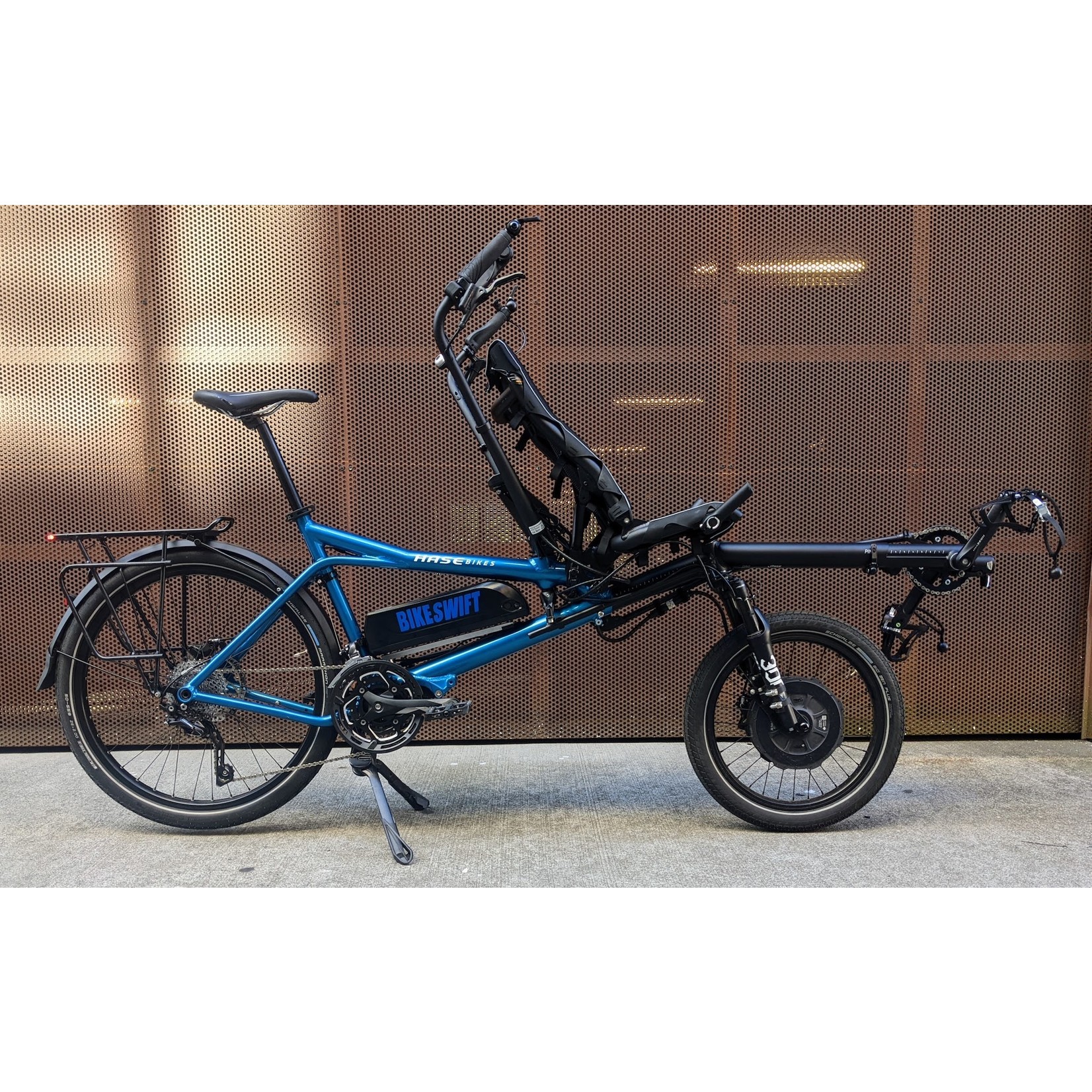

This is the premier electric tandem for all kinds of riding - quick jaunts around the city, a long ride in the country, or even a multi-day tour! The stoker sits in the front in a reclined position, perfect for comfort and view; the captain is upright and benefits from the long wheelbase for improved steering and handling. This bike is the result of meticulous engineering and many years of refinement from Hase, and the 2023 model features:

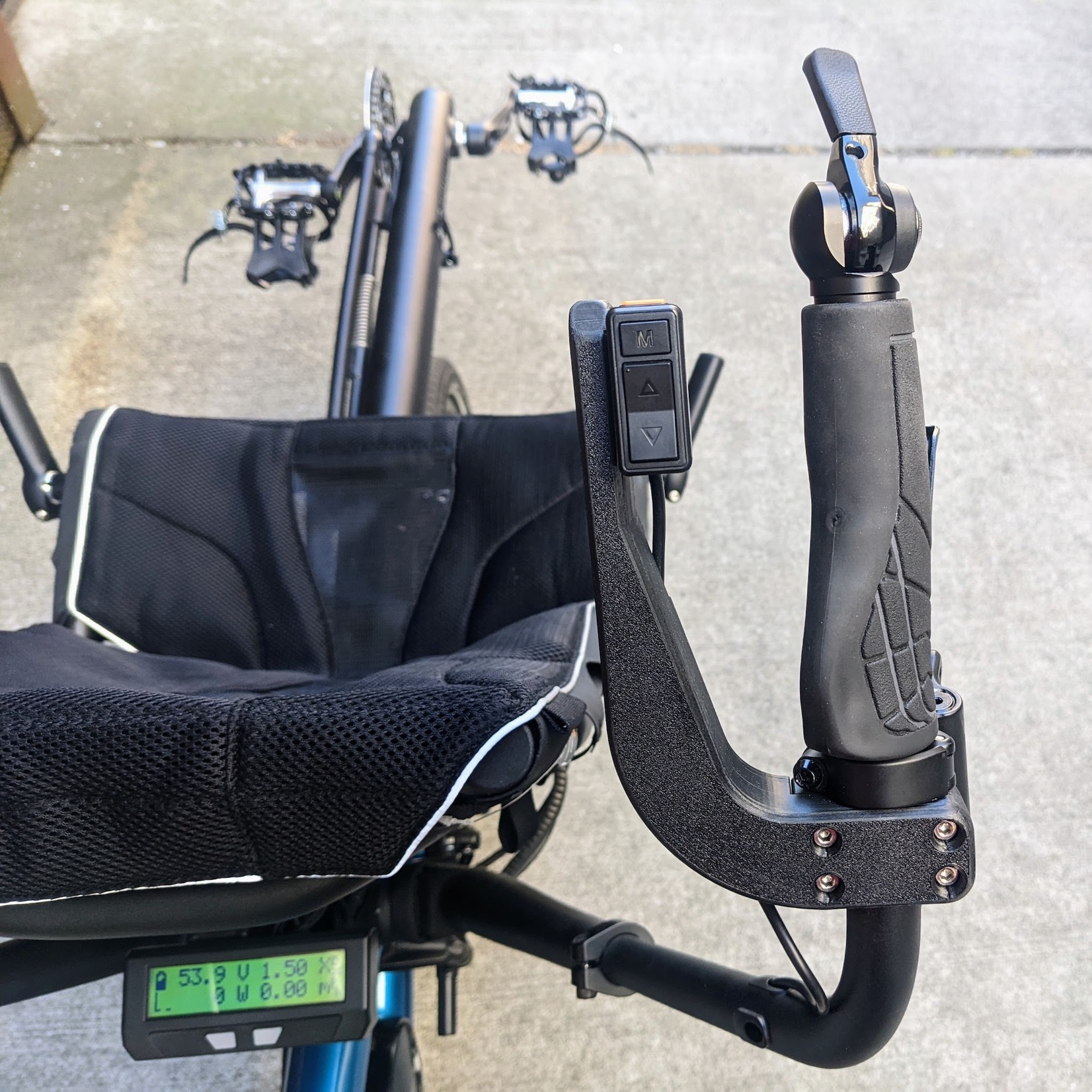

  • Improved captain (rear) handlebars that are stiffer, easier to adjust, and accommodate a wider variety of positions (including very tall/upright)
  • A telescoping main frame tube (in addition to the stoker's seat tube, which has always telescoped to allow for various rider heights), allowing for easier storage, compatibility with standard bike racks, and better handling when ridden solo
  • Revised stoker position for more comfortable riding (lower pedals relative to stoker seat)

This bike features a cutting-edge motor system. At the heart is the All-Axle hub motor, made in Vancouver BC, which has no internal moving parts, is compatible with nearly any bike imaginable, and provides considerable torque in both forwards (acceleration) and backwards (regenerative braking) directions. The system also has a torque sensing bottom bracket, meaning that the system assists based on the captain's pedal power, along with a throttle for quick off-the-line acceleration. The Panasonic/Tesla battery provides 1,000 watt-hours of energy, enough range for 25-60 miles of regular riding (and can be connected in parallel with a second battery for double the range).

The bike comes standard with a rear rack, and an optional Lowrider Front Rack can be added ($285) that can take an additional 4 panniers (2 standard, 2 small size).

Come to Bike Swift for a test ride!

Note: Each bike is built to order, which includes custom 3-D printed parts and a considerable amount of labor. Allow 2-3 weeks for completion after order. Shipping is possible, please inquire before ordering.

Motor Grin Tech All Axle Front, 500/1000+ Watt, Brushless Gearless DC, Made in Canada
Battery 1,000 Watt-Hr Frame Mount, Lockable, Samsung INR21700 Cells
Display Cycle Analyst V3 WP
Controller Frankenrunner L10 from Grin Technologies
Pedal Sensor Sempu Torque-Sensing Square Taper (On Captain's Crankset)
Charger 2.5A 58.8V (100%) charger with ST3 plug, UL certification (see Cycle Satiator if you're looking for an upgrade!)
Frame 6061 Aluminium, Telescoping Stoker Tube & Wheelbase
Fork • Spinner 300 Suspension Fork, 15mm Thru-Axle
Brakes Tektro Tektro HD-M750 Hydraulic
Front Derailleur Shimano Deore 3x, Top Swing, Dual Pull
Rear Derailleur 10-speed Shimano Deore
Front Wheel 32 Spoke 20" Double-Walled Rim w/ Grin All-Axle Hub Motor
Rear Wheel 32-Spoke DT, Sealed Bearing Hub
Tires Schwalbe Marathon Plus 1.75" Wide (20" Front, 26" Rear)
Crankset Hase Custom Tandem Cranksets (1x in Front, 3x for Rear)
Shifters Microshift Bar-End
Chain KMC 10 Speed
Handlebar Custom Hase Infinite Adjustability
Headset Hase Custom
Fenders Hase Full Coverage Polycarbonate w/ Flaps
Lights E-Bike Lights, StVZO Compliant
Kickstand URSUS Jumbo Heavy-Duty (220 lbs)
